Feeding cable from USB socket to trinket tray

[Porter]

FYI to wire in a USB-C PD power source is relatively simple. This would be a very good option, and appropriately rugged for an automotive application.

Coolgear Chargeit! Mini 75W Dual Port USB-A & USB-C PD Charger w/PPS & QC4.0 Support https://a.co/d/i3J0oUN

Takes variable DC input from 12V-24V which more than covers the 12V-14.5V range you're likely to see in a car.



[Time2Fly]

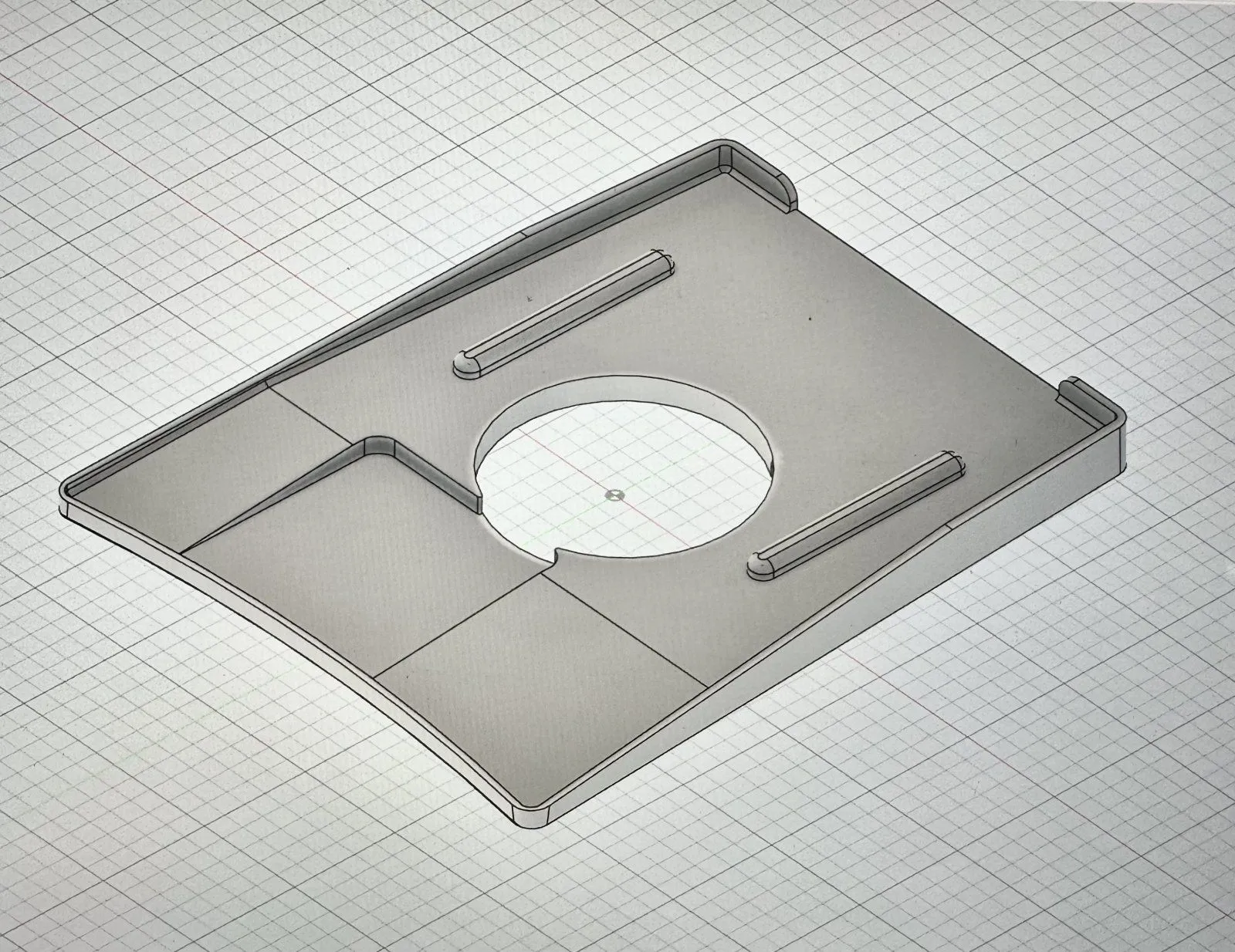

View attachment 26916

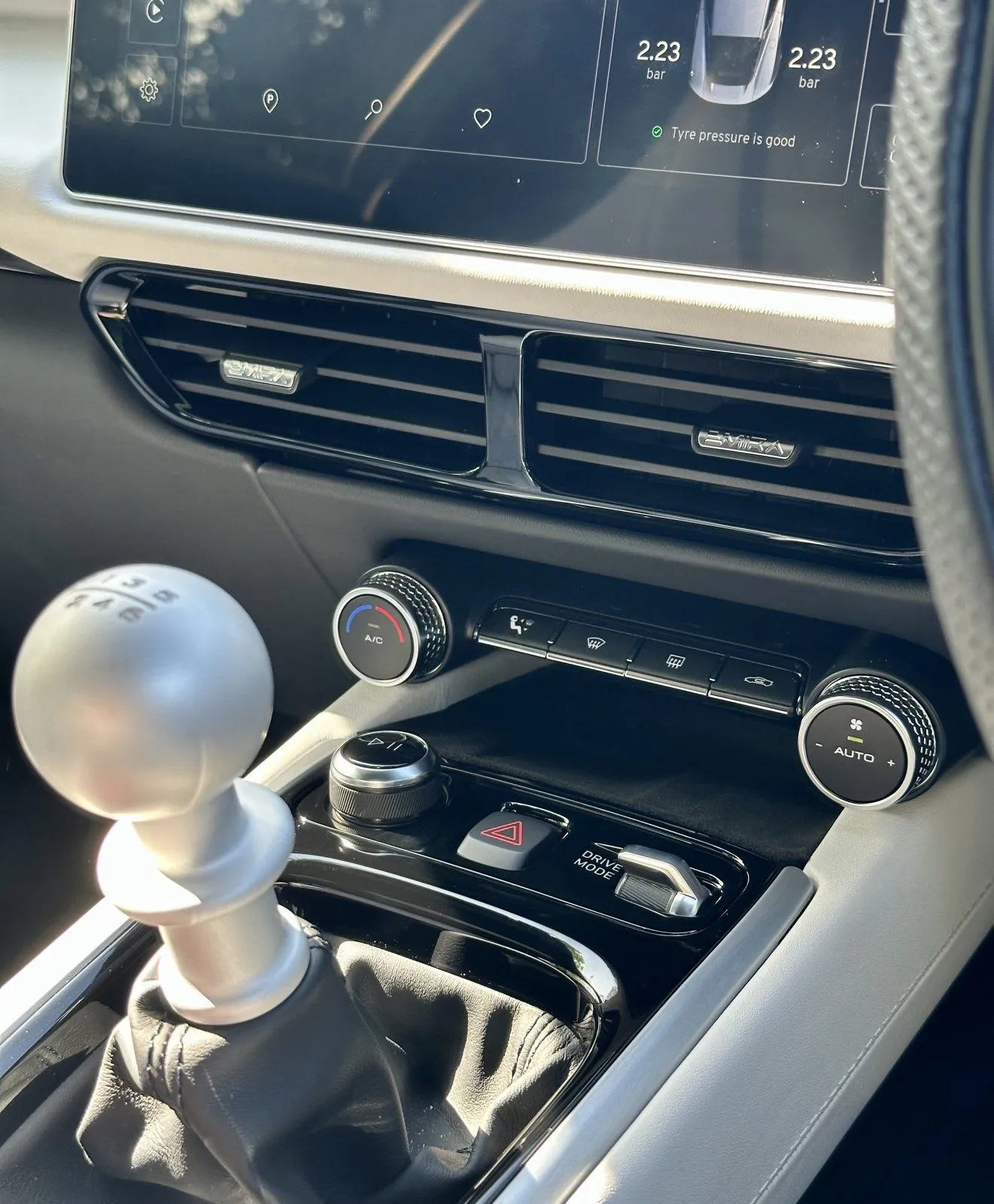

View attachment 26920

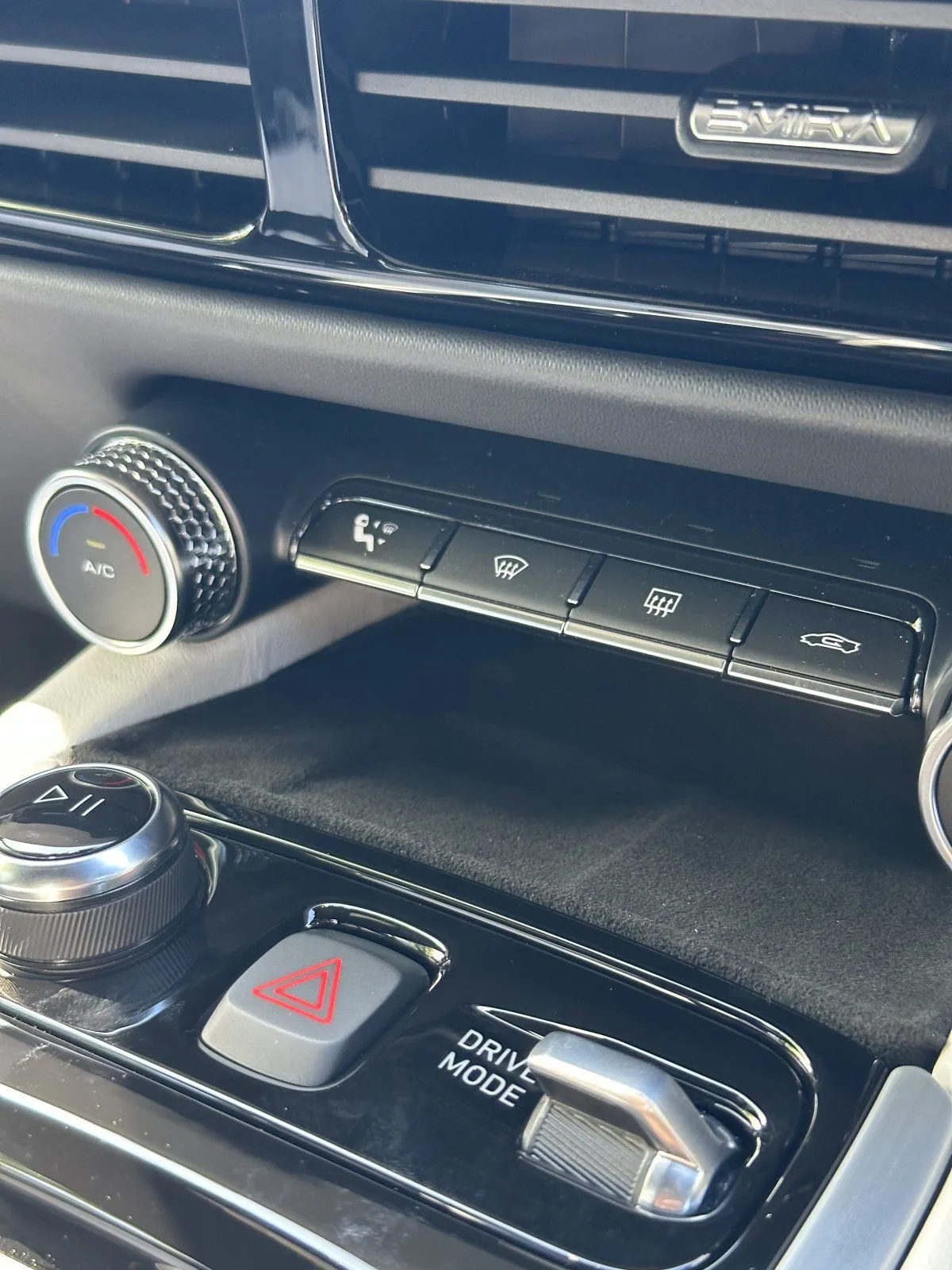

View attachment 26915
Printed in PLA+, I wouldn’t use straight PLA as it’ll deform as car gets hot in the sun. ABS would be better.

Wrapped in genuine Alcantara which is surprisingly expensive even for a small cut. I used double sided carpet tape which works well enough.

Fits my iPhone 14 with a slim case perfectly. A slightly thicker case should be fine too.

DM me with your email if you’d like the stl, it’s not possible to post it here as an attachment.

Would you be able to modify this for different phones? I'm happy to help reimburse the effort.



[Time2Fly]

https://www.thingiverse.com/thing:5885980

STL file. Fits iphone 12 pro with Magsafe case and iphone 13 with masgsafe case.
Not tested any others but happy to adapt if anyone has requests

Can you modify it for a Pixel 6 Pro with case?



[JWJ9000]

Can you modify it for a Pixel 6 Pro with case?

I can . I’d need accurate dimensions. Ideally access to the phone in the case.



[silent cilantro]

Yes happy to share it, will post it tomorrow. But note it’s designed around my thin phone case and 56mm dia charger.

Finally getting around printing this now that my car is this side of the pond.

Just waiting on some Alcantara to wrap it. Thanks for sharing the file @frazzer !



[frazzer]

Finally getting around printing this now that my car is this side of the pond.

Just waiting on some Alcantara to wrap it. Thanks for sharing the file @frazzer !

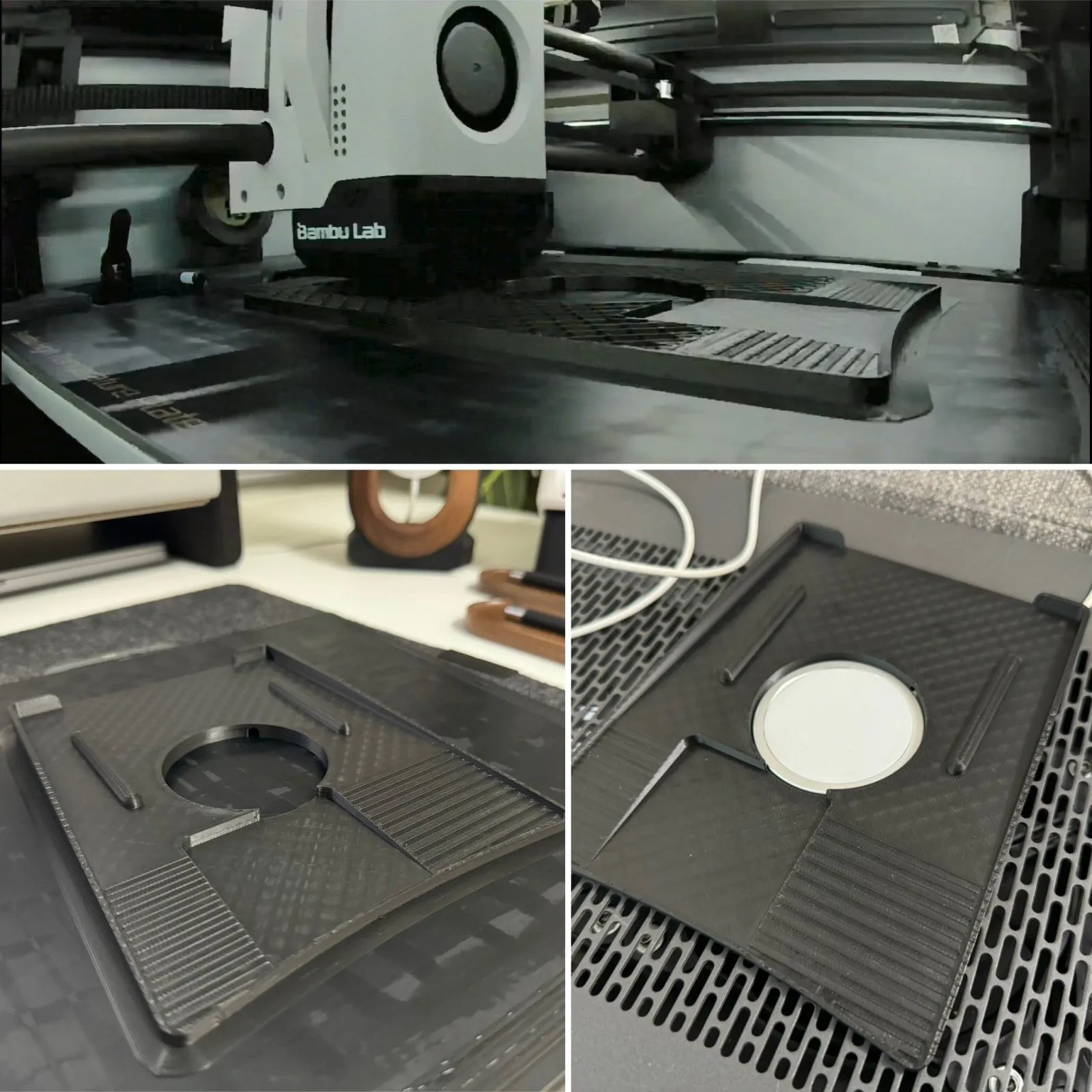

View attachment 35260

You're very welcome. Use a strong glue to wrap the Alcantara - worth doing a little test on some scrap first to see what works best. I used carpet tape which is not doing a great job to be honest, it's lifting and need to get around to redo it.



[silent cilantro]

Thanks, yeah I plan on using 3M headliner adhesive.

Would you by any chance be able to send me the original CAD file?

I’m not great with 3D modeling but I wanna see if I can move things around a bit. Switch the camera opening to the back of the piece instead of the front so the phone goes in top first. This would requiere rerouting of the cable groove too.



[frazzer]

Thanks, yeah I plan on using 3M headliner adhesive.

Would you by any chance be able to send me the original CAD file?

I’m not great with 3D modeling but I wanna see if I can move things around a bit. Switch the camera opening to the back of the piece instead of the front so the phone goes in top first. This would requiere rerouting of the cable groove too.

DM'ed you



[Time2Fly]

Thanks, yeah I plan on using 3M headliner adhesive.

Would you by any chance be able to send me the original CAD file?

I’m not great with 3D modeling but I wanna see if I can move things around a bit. Switch the camera opening to the back of the piece instead of the front so the phone goes in top first. This would requiere rerouting of the cable groove too.

Why would the cable need to be tried re-routed? Just to shift the mag location closer to the forward lip?

Anyway, nice work on the phone tray modification. I'm hoping to modify mine for a pixel 8 Pro top-in-first as well. I have alcantara to wrap it with. Just waiting on EJUS Racing to make my custom case so I can get measurements made.



[Time2Fly]

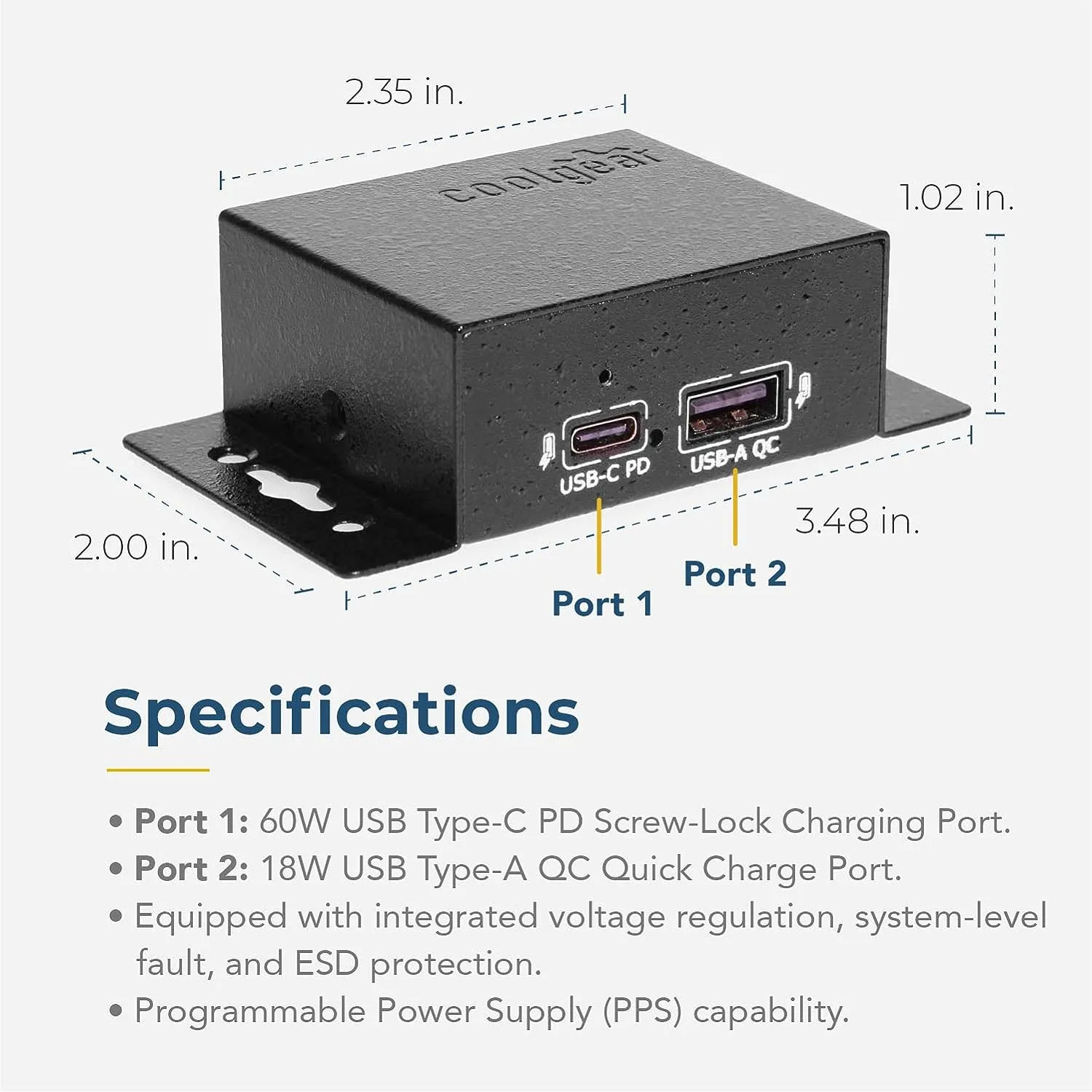

FYI to wire in a USB-C PD power source is relatively simple. This would be a very good option, and appropriately rugged for an automotive application.

Coolgear Chargeit! Mini 75W Dual Port USB-A & USB-C PD Charger w/PPS & QC4.0 Support https://a.co/d/i3J0oUN

View attachment 29925

Takes variable DC input from 12V-24V which more than covers the 12V-14.5V range you're likely to see in a car.

Has anyone installed something like this yet?



[silent cilantro]

Why would the cable need to be tried re-routed? Just to shift the mag location closer to the forward lip?

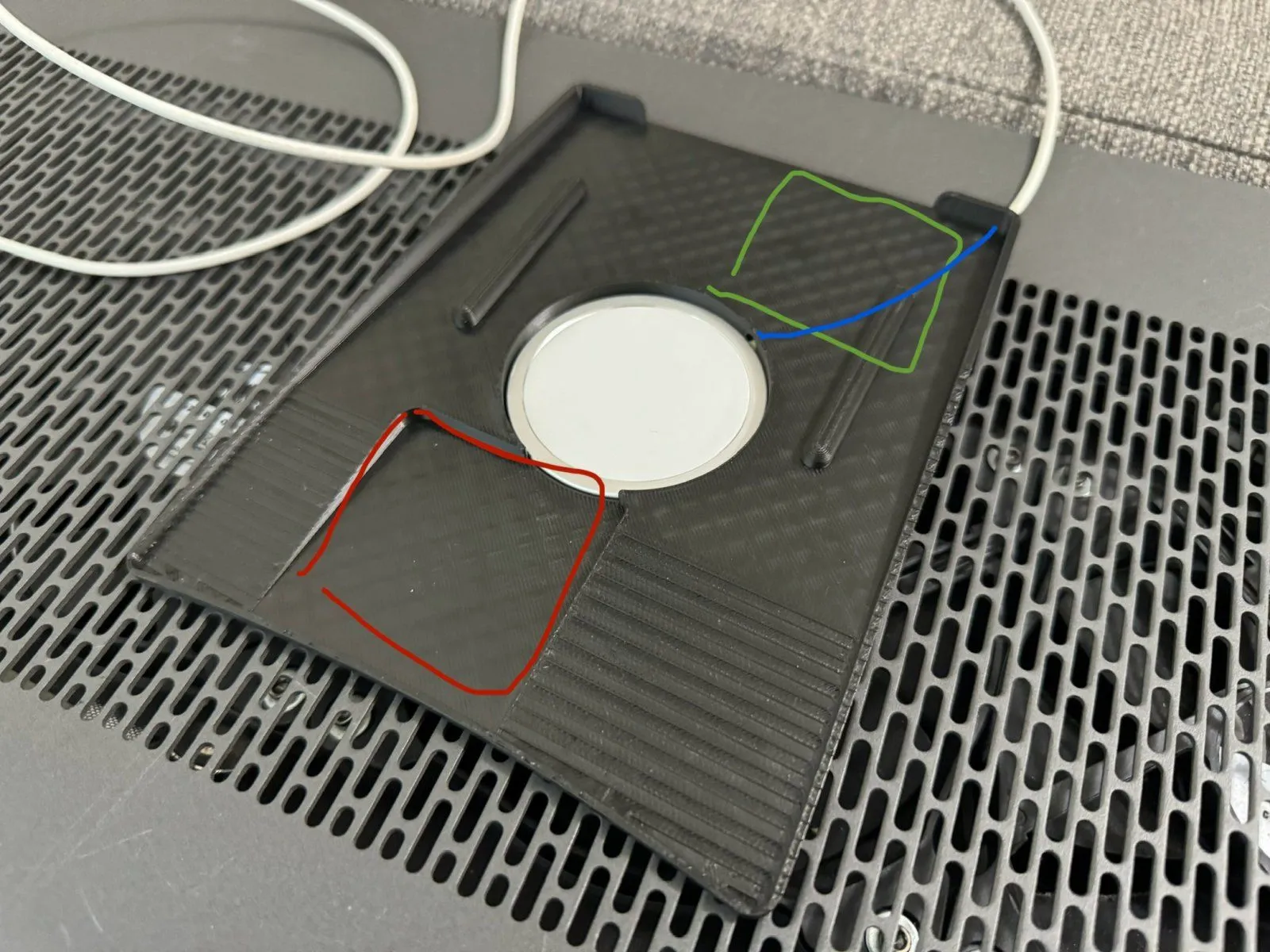

I don’t think that would work. I want to move the camera cutout from the bottom left (red) to top right (green), but there is a groove (blue) to route the cable in that location. That would have to be relocated.



[Time2Fly]

With the 3d print as a mold, I wonder about perhaps doing this instead of alcantara.



[silent cilantro]

Yeah I think I that’s doable



[charlotte49ers]

That's good news. I already wondered how I will get a cable up there from the USB port below. Is the rubber mat also removable? I could maybe design a 3D printable part with integrated Magsafe/Wireless charging for this tray.

im interested if ya can pull this off with the iphone charger. id be interested for sure



[charlotte49ers]

Then it will be quite easy to draw a 3D model. Just some test prints for final fitting required. When I will finally have my car (probably 1st of March ), I will try my best and share the file. You just need somebody with a 3D printer then. But of course I could print some and try to get a nice finish on them, If anybody wants one.

i want one!!!



[Time2Fly]

Can someone verify if the key fob is magnetic? I'm interested in modifying this tray to hold the key as well. Put the phone off center abs add a little indentation for the key fob with a neodymium magnet under it.



[virtualmacho]

Can someone verify if the key fob is magnetic? I'm interested in modifying this tray to hold the key as well. Put the phone off center abs add a little indentation for the key fob with a neodymium magnet under it.

Only a small area on the yellow Lotus badge side responds to a magnet, and it's really weak. You will probably be better off with a deep indentation than a magnet.



[robrmon]

Did anyone manage to adapt the STL file for an iPhone 14 Pro max? Those are a bit larger. If not, I’ll have to do it. Many thanks to the original designer!! @frazzer



[JWJ9000]

If you pm me I can send you the fusion 360 file for you to edit. I’ve upgraded to a 14 Pro ( not max) even with the protruding camera it still works well



[robrmon]

If you pm me I can send you the fusion 360 file for you to edit. I’ve upgraded to a 14 Pro ( not max) even with the protruding camera it still works well

Will do, thanks
