Lotus Emira Service Notes

[DerTheDer]

Anyone have them they can post? I see they were released on 01/23/2023, however I cannot find a copy (Free).

Welcome | VSI

vsic.lotuscars.com



[kitkat]

Does posting the service notes pose an issue @TomE ?



[kitkat]

Some thoughts from reading the service notes:
- Clutch replacement still requires engine removal when going by the book.
- All four fenders are pretty easy to remove.
- Removing the center console to potentially remove the shifter mesh involves removing lots of switches and harnesses and potentially both seats according to the service notes.



[EspritGuy]

Anyone have them they can post? I see they were released on 01/23/2023, however I cannot find a copy (Free).

Welcome | VSI

vsic.lotuscars.com

It seems the key to access is the VIN.
Denied Access is soon to be the title of my autobiography.
Living in denial and other suburban myths.



[kitkat]

It seems the key to access is the VIN.
Denied Access is soon to be the title of my autobiography.
Living in denial and other suburban myths.

The key is money, just like every other modern auto mfg repair center site.

$32 later I have a 600 page repair manual.



[Nova]

The key is money, just like every other modern auto mfg repair center site.

$32 later I have a 600 page repair manual.

What year/market is the manual for?



[kitkat]

What year/market is the manual for?

First edition manual and all the indications I’ve seen show LHD, and it’s mostly a global car from what I can tell.



[kitkat]

I looked through the manual to see if there was documentation on technical data for alignment, none was found. I suppose that’ll come in a different document?



[Kimmax]

The key is money, just like every other modern auto mfg repair center site.

$32 later I have a 600 page repair manual.

Can you check if there is something noted regarding subwoofer install/service?

Good to know before spending money to get it



[kitkat]

Can you check if there is something noted regarding subwoofer install/service?

Good to know before spending money to get it

Yup.

- Remove rear bulkhead trim (6xm5x16 bolts 6 clips)
- Remove b pillar trim (pop-off pieces and the seatbelt bolt plus M6x20 bolt, 2 clips hold in place)
- Remove rear quarter left side trim. (3x M6-20 bolts, one M5x16 bolt, and 5 clips)
- 4x M6x20 bolts securing the subwoof in place.



[Jimblob]

Does it say how to remove / replace the seatbelts?



[kitkat]

Does it say how to remove / replace the seatbelts?

Yup, few pages on connections to the seat, the spool mechanism, and the upper bolt.



[TomE]

Does posting the service notes pose an issue @TomE ?

It depends what the T&Cs of the download were. If you'd be breaching Lotus copyright by making it publicly available then Lotus would probably issue a take-down notice to the forum if you linked it on here. Check the copyright section of our terms here.



[TomE]

Some thoughts from reading the service notes:
- Clutch replacement still requires engine removal when going by the book.
- All four fenders are pretty easy to remove.
- Removing the center console to potentially remove the shifter mesh involves removing lots of switches and harnesses and potentially both seats according to the service notes.

If engine removal is still required to get to the clutch then hopefully the panel removal is easier than removing the whole rear clam on the Evora. Do the notes quote a "book time" for carrying out the clutch change?



[kitkat]

If engine removal is still required to get to the clutch then hopefully the panel removal is easier than removing the whole rear clam on the Evora. Do the notes quote a "book time" for carrying out the clutch change?

No book time quotes however removal of the engine requires removal of the boot area which also means removal of rear bumper and rear fenders. Likely nowhere nearly as labor intensive as the old rear clam but still quite a few body panels needs to be removed.



[Kimmax]

Yup.

- Remove rear bulkhead trim (6xm5x16 bolts 6 clips)
- Remove b pillar trim (pop-off pieces and the seatbelt bolt plus M6x20 bolt, 2 clips hold in place)
- Remove rear quarter left side trim. (3x M6-20 bolts, one M5x16 bolt, and 5 clips)
- 4x M6x20 bolts securing the subwoof in place.

Thank you ♥



[Porter]

The key is money, just like every other modern auto mfg repair center site.

$32 later I have a 600 page repair manual.

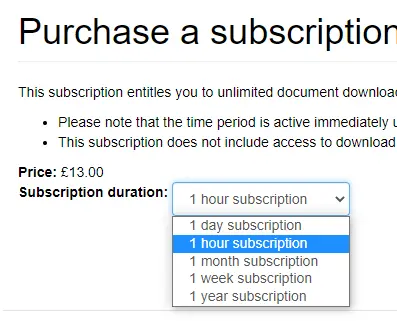

Haha I just noticed they have an hourly option, even cheaper!



[Man.v.Cars]

Yup, few pages on connections to the seat, the spool mechanism, and the upper bolt.

An older thread but a quick question before I pay for the download, or if you care to answer.

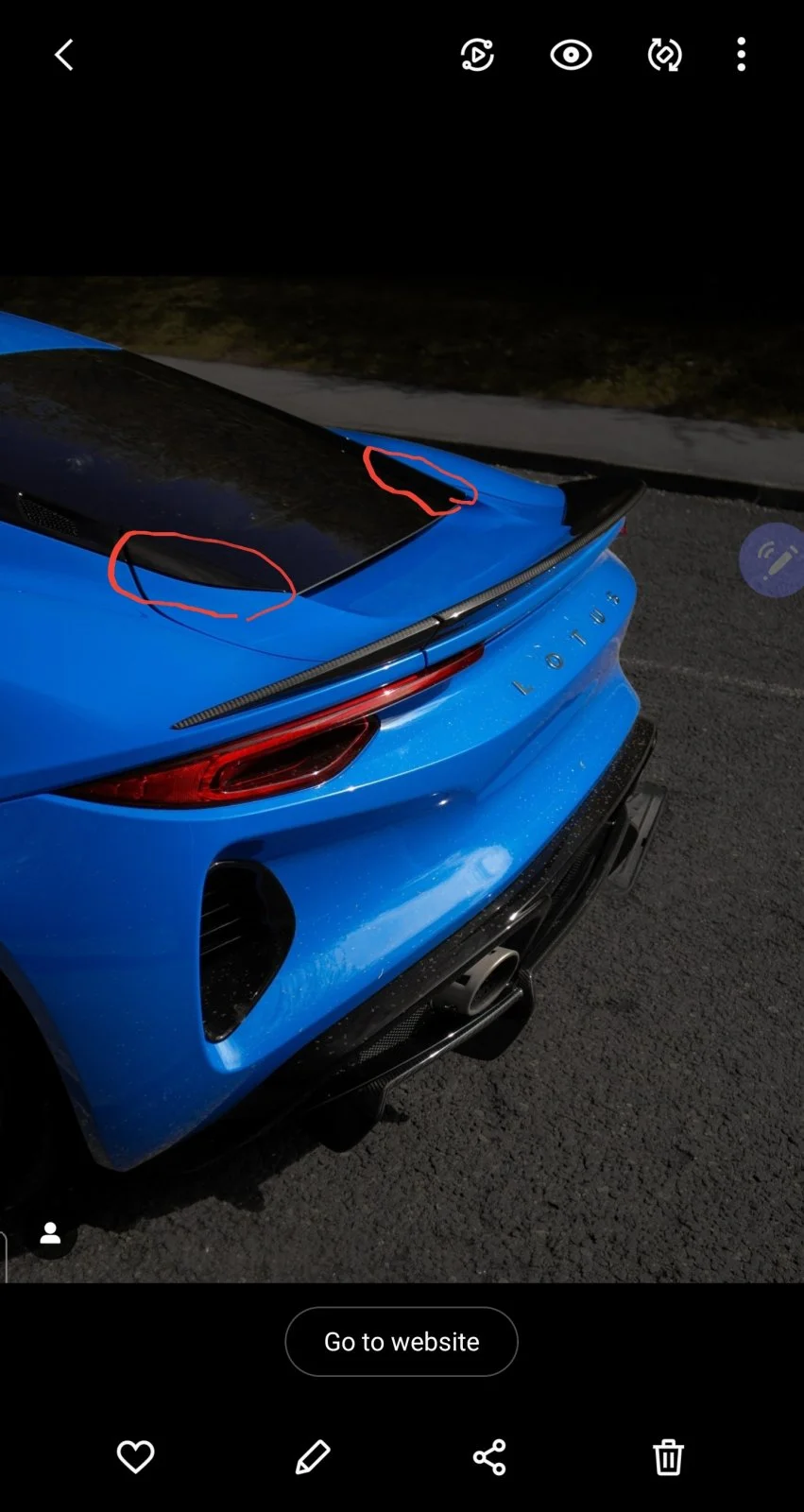

The side panels down either side of the rear glass, black on mine as it has the black pack, does it show how to remove the bottom part left and right, and a part number? Indicated on the picture in red.

Thank you.



[kitkat]

An older thread but a quick question before I pay for the download, or if you care to answer.

The side panels down either side of the rear glass, black on mine as it has the black pack, does it show how to remove the bottom part left and right, and a part number? Indicated on the picture in red.

Thank you.

DMed you but:

Not much instruction here, looks like it's stickied on. As for part numbers:

Parts Shop - Bell and Colvill

Parts Shop - Bell and Colvill are selling and servicing cars from its showrooms.

parts.bellandcolvill.co.uk



[Man.v.Cars]

DMed you but:

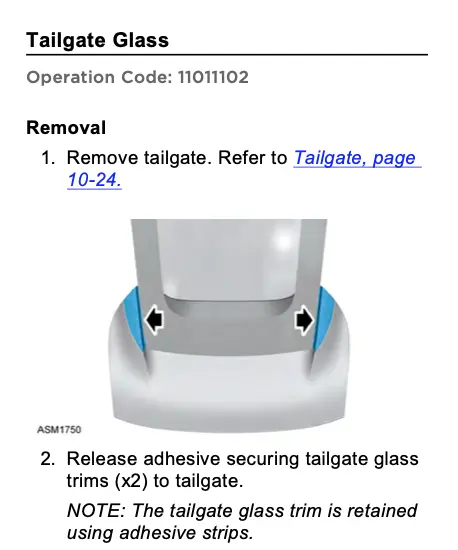

View attachment 49168

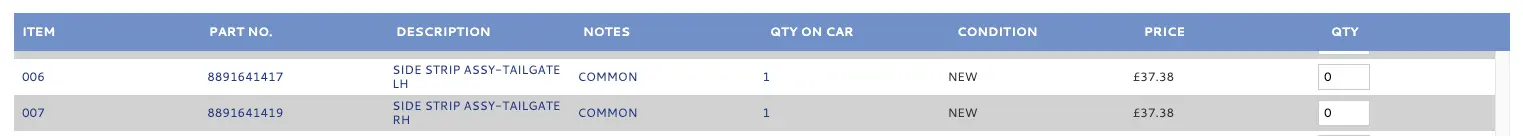

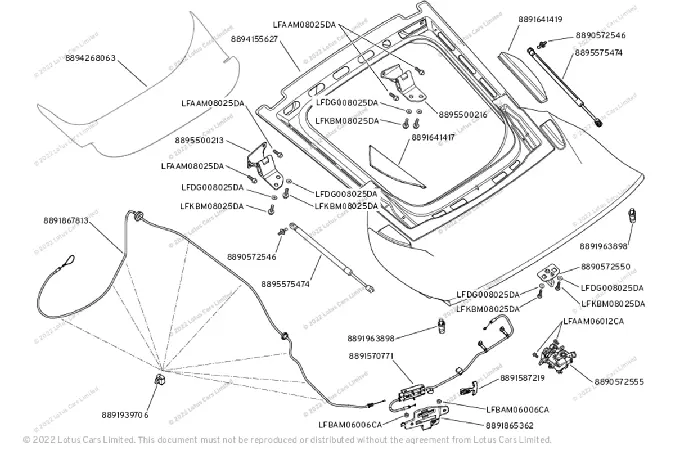

Not much instruction here, looks like it's stickied on. As for part numbers:

Parts Shop - Bell and Colvill

Parts Shop - Bell and Colvill are selling and servicing cars from its showrooms.

parts.bellandcolvill.co.uk

View attachment 49169
View attachment 49170

Thanks for that, much appreciated.
